Agent API Creation and External Invocation

Objective: Generate an API Key for a published Agent so it can be called by external systems, and obtain the official API documentation for integration.

Create an API Key

Enter the Agent's API Console

On the Agent orchestration page, click API Console in the upper-right corner.
After entering, you will see the API channels list page.

Create an API Channel

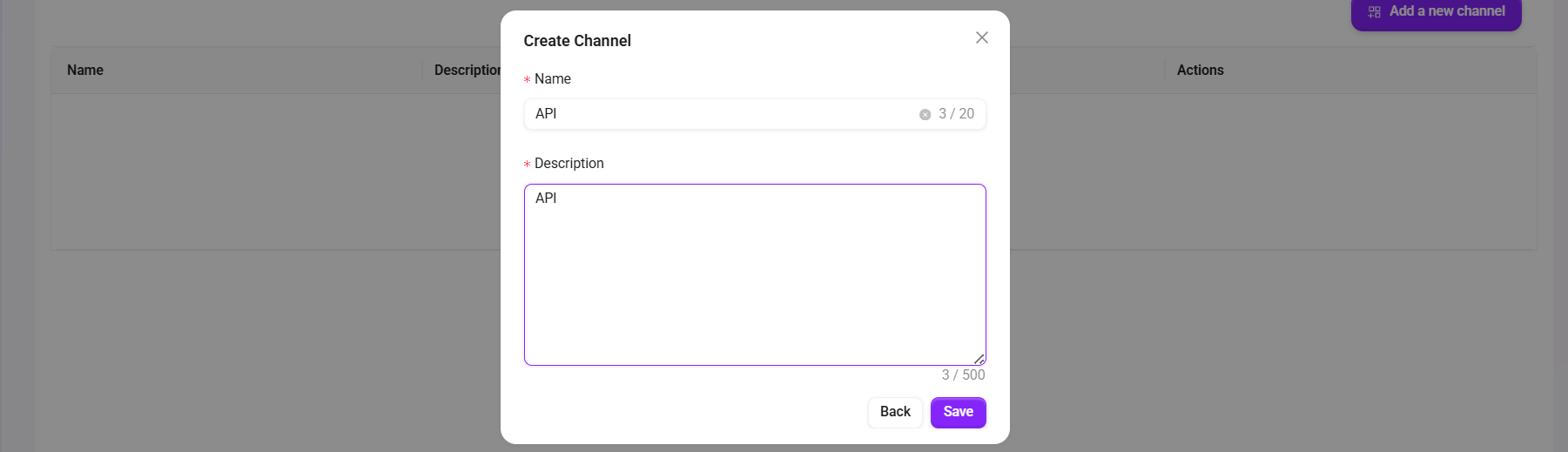

Click Add a new channel.
In the pop-up window, fill in:
- Name: for example API
- Description: for example API
Click Save to save.

Enter the Channel's key page

Find the record you just created in the channel list.
Click Learn More to enter the API Keys page.

Generate an API Key

Click Add a key.
In the pop-up window, set:
- Name: for example API
- Deadline: select the validity period as needed (for example, 3 Months)
Click Save to generate the key.
Copy and securely save the Key immediately (it is usually no longer fully displayed after the page is closed).

Obtain the API documentation and integrate

On the API Keys page, click Access Document.
In the documentation, copy the following information for external system integration:
- Request URL (Endpoint)
- Authentication method (usually Authorization: Bearer <API_KEY>)
- Request body example (input parameters)
- Response body example (output fields)
The external system can call the Agent by sending an HTTP request according to the examples in the documentation.

Call the API and Chat with the Agent

API Key Authentication

Method: POST
Endpoint: https://{host}/webapi/lite_api/v2/api/chat-with-bot/chat
Header: api-key: YOUR_API_KEY

Key fields in the request body (JSON):

messages (required): an array of conversation messages; role supports user/ai/system/human/assistant
stream (optional, default false): whether to return a streaming response
show_tool_result (optional, default false): whether to return tool results or references
file_id (optional): file ID (string or array of strings)
workspace_id (optional): workspace ID (string or array of strings)
layout_mode (optional, default 0): 1 returns knowledge retrieval content, 0 for normal chat
skip_hint (optional, default false): whether to skip the PII prompt

Notes:

It is recommended that the role of the last message be human or user
For image input, you must first call the "Upload Image API" to obtain image_ids

Minimal request example:

{
	"messages": [
		{"role": "system", "content": "Today is Monday"},
		{
			"role": "user",
			"content": [
				{"type": "text", "text": "Please describe the following images"},
				{"type": "image_ids", "image_ids": ["uuid1", "uuid2"]}
			]
		}
	],
	"stream": false,
	"show_tool_result": false
}

Successful response highlights:

Non-streaming: data.full_output is the final answer, and data.tool_result is the optional tool result
Streaming: the event stream includes stream, tool_result, and end

Get Access Token

An Access Token is obtained in three steps: Create a Client → Query the Client to get credentials → Generate the Token.

1. Create a Client

Method: POST
Endpoint: https://{host}/webapi/lite_api/v1/admin/clients
Header: Authorization: Bearer YOUR_ADMIN_TOKEN

Key fields in the request body (JSON):

name (required): Client name
description (optional): Description
trusted domains (optional): List of trusted domains, defaults to an empty array

curl --location 'https://{host}/webapi/lite_api/v1/admin/clients' \
  --header 'Content-Type: application/json' \
  --header 'Accept: application/json' \
  --header 'Authorization: Bearer YOUR_ADMIN_TOKEN' \
  --data '{
    "name": "test",
    "description": "test",
    "trusted domains": []
  }'

The successful response will return client_id and client_secret. Save them securely.

2. Query Client List (Optional)

To view existing Clients and their client_id, use the following endpoint:

Method: GET
Endpoint: https://{host}/webapi/lite_api/v1/admin/clients?page=1&page_size=10
Header: Authorization: Bearer YOUR_ADMIN_TOKEN

curl --location 'https://{host}/webapi/lite_api/v1/admin/clients?page=1&page_size=10' \
  --header 'Accept: application/json' \
  --header 'Authorization: Bearer YOUR_ADMIN_TOKEN'

3. Generate Access Token

Use the client_id and client_secret obtained in step 1 to generate an access token:

Method: POST
Endpoint: https://{host}/webapi/lite_api/v1/iam/client_token

Key fields in the request body (JSON):

client_id (required): The ID obtained when creating the Client
client_secret (required): The secret obtained when creating the Client
username (required): The associated username

curl --location 'https://{host}/webapi/lite_api/v1/iam/client_token' \
  --header 'Content-Type: application/json' \
  --header 'Accept: application/json' \
  --data '{
    "client_id": "YOUR_CLIENT_ID",
    "client_secret": "YOUR_CLIENT_SECRET",
    "username": "YOUR_USERNAME"
  }'

Successful response example:

{
  "code": 200,
  "data": {
    "access_token": "eyJhbGci...",
    "token_type": "Bearer",
    "expires_in": 3600
  },
  "message": "success"
}

Use the access_token value from the response as YOUR_ACCESS_TOKEN in the API below.

Access Token Authentication

Method: POST
Endpoint: https://{host}/webapi/lite_api/v2/api/chat-with-bot/{agent_id}
Header: Authorization: Bearer YOUR_ACCESS_TOKEN

Path parameters:

agent_id: the UUID of the target Agent (can be obtained from the Agent page URL)

Key fields in the request body (JSON):

messages (required): role is limited to user/human, and the maximum array length is 1
stream, show_tool_result, file_id, workspace_id, layout_mode, skip_hint (same as above)
conversation_id (optional): multi-turn conversation session ID; if not provided, the system creates one and returns it in the response

Minimal request example:

{
	"messages": [
		{
			"role": "user",
			"content": [
				{"type": "text", "text": "Please describe the following images"},
				{"type": "image_ids", "image_ids": ["uuid1", "uuid2"]}
			]
		}
	],
	"stream": false,
	"show_tool_result": false,
	"layout_mode": 0,
	"conversation_id": null
}

Successful response highlights:

data.conversation_id: used for reuse in subsequent multi-turn conversations
data.full_output: the final answer

Upload Images

Method: POST
New Endpoint (recommended): https://{host}/webapi/lite_api/v2/api/chat-with-bot/upload-images
Old Endpoint (to be deprecated soon): https://{host}/webapi/lite_api/v2/api/chat-with-bot/{agent_id}/upload-images
Header (example): api-key: YOUR_API_KEY
Content-Type: multipart/form-data

Request parameters:

files (required): one or more image files

Successful response example:

{
	"code": 201,
	"data": {
		"ids": ["2973a321-905d-4f07-9ad4-ff0ef47a174f"]
	},
	"message": "success"
}

Description:

Fill the returned ids into the image_ids field in messages[].content of the chat API to complete image-based Q&A.

Chat Image / File Retrieval Guide

Last updated by | Gavin Guo (Medalsoft) | Aug 12, 2026 at GMT+8 14:23

This section summarizes the complete API flow for chat (message) scenarios, from "ID returned" to "final preview/download", so troubleshooting can be done quickly.

1. Image

Flow Overview

The message returns an image ID
Call ekb-temporary and exchange file_id for a temporary link
Access the temporary link with the authorization header
Render/preview the image

1) Message returns image ID

In chat messages, images are returned in Markdown image syntax, and the link contains a temporary file ID:

![](/api/workspace/file/TemporaryFile/7485579177907720192)

7485579177907720192 is the image file_id, used to get the real temporary download link in the next step.

2) Exchange `file_id` for temporary link

Endpoint: POST /webapi/knowledge/v1/file/ekb-temporary
Purpose: pass file_id from step 1 to obtain a real accessible temporary file link

Request example:

curl 'https://demo.next.serviceme.com/webapi/knowledge/v1/file/ekb-temporary' \
	-H 'accept: application/json, text/plain, */*' \
	-H 'authorization: Bearer <token>' \
	-H 'content-type: application/json' \
	-H 'locale: zh-CN' \
	--data-raw '{"file_id":["7485579177907720192"]}'

Key parameters:

Parameter	Location	Description
`authorization`	Header	Bearer token is required; request will be rejected without it
`file_id`	Body (array)	List of file IDs to exchange; batch is supported

Returned value (example, signature truncated):

https://demo.next.serviceme.com/webapi/knowledge/v1/file/ekb-temporary-file/83ba1459f010783229f5787c

3) Access the temporary link

GET the returned temporary link to retrieve image content. authorization is still required.

GET https://demo.next.serviceme.com/webapi/knowledge/v1/file/ekb-temporary-file/<signed temporary file identifier>
authorization: Bearer <token>

Troubleshooting checklist:

The numeric ID in the message is only a file_id; it cannot be accessed directly
Temporary links are not anonymous; always include authorization
If image loading fails, check file_id, token validity, and temporary link expiration

2. File

Flow Overview

The message returns file ID information (often identified by category: "tool")
Call get_detail to fetch file details (document_id mapping)
Call ekb-preview for file preview

1) Message returns file ID

When a chat message has category: "tool", it usually indicates a file-related message and includes a file identifier (for example, document_id).

2) Get file details

Endpoint: GET /webapi/knowledge/v1/rag/get_detail?document_id={document_id}
Purpose: query detailed file metadata (filename, type, objectType, etc.) for preview request assembly

Request example:

curl 'https://demo.next.serviceme.com/webapi/knowledge/v1/rag/get_detail?document_id=7485164512316755968' \
	-H 'accept: application/json, text/plain, */*' \
	-H 'authorization: Bearer <token>' \
	-H 'content-type: application/json' \
	-H 'locale: zh-CN' \
	--data-raw '{}'

Key parameters:

Parameter	Location	Description
`document_id`	Query String	File document ID from message
`authorization`	Header	Bearer token is required

3) Preview file

Endpoint: POST /webapi/knowledge/v1/file/ekb-preview
Purpose: use file ID, object type, and file type to get preview content or preview URL

Request example:

curl 'https://demo.next.serviceme.com/webapi/knowledge/v1/file/ekb-preview' \
	-H 'accept: application/json, text/plain, */*' \
	-H 'authorization: Bearer <token>' \
	-H 'content-type: application/json' \
	-H 'locale: zh-CN' \
	--data-raw '{"id":"7485164641157386241","objectType":"2","filetype":1}'

Key parameters:

Parameter	Description
`id`	File ID (usually from `get_detail`; may differ from `document_id`)
`objectType`	Object type (use value returned by `get_detail`)
`filetype`	File type identifier
`authorization`	Bearer token is required

Troubleshooting checklist:

File-related messages are commonly identified via category: "tool"
Call get_detail first, then ekb-preview
Expired token typically causes 401 on all related APIs

3. Image vs File API Comparison

Scenario	Message Identifier	Key API Flow	Requires authorization
Image	Markdown image syntax `![](/api/workspace/file/TemporaryFile/{file_id})`	`ekb-temporary` (exchange link) -> access temporary link	Yes (both steps)
File	`category: "tool"`	`get_detail` (details) -> `ekb-preview` (preview)	Yes (both steps)

Common rule: all calls require a valid Bearer Token; token expiry is the most common root cause.

Create an API Key​

Enter the Agent's API Console​

Create an API Channel​

Enter the Channel's key page​

Generate an API Key​

Obtain the API documentation and integrate​

Call the API and Chat with the Agent​

API Key Authentication​

Get Access Token​

1. Create a Client​

2. Query Client List (Optional)​

3. Generate Access Token​

Access Token Authentication​

Upload Images​

Chat Image / File Retrieval Guide​

1. Image​

Flow Overview​

1) Message returns image ID​

2) Exchange file_id for temporary link​

3) Access the temporary link​

2. File​

Flow Overview​

1) Message returns file ID​

2) Get file details​

3) Preview file​

3. Image vs File API Comparison​

Create an API Key

Enter the Agent's API Console

Create an API Channel

Enter the Channel's key page

Generate an API Key

Obtain the API documentation and integrate

Call the API and Chat with the Agent

API Key Authentication

Get Access Token

1. Create a Client

2. Query Client List (Optional)

3. Generate Access Token

Access Token Authentication

Upload Images

Chat Image / File Retrieval Guide

1. Image

Flow Overview

1) Message returns image ID

2) Exchange `file_id` for temporary link

3) Access the temporary link

2. File

Flow Overview

1) Message returns file ID

2) Get file details

3) Preview file

3. Image vs File API Comparison
