n8n Integration

Overview

n8n is a powerful open-source automation platform that allows users to create, deploy, and manage complex workflows through a visual interface. It supports integration with over 300 applications and services, and provides multiple trigger methods such as webhooks and scheduled triggers.

The bidirectional integration between OneAI and n8n provides users with robust automation capabilities:

1. OneAI calls n8n workflows: Through the skill plugin mechanism, n8n workflows can be used as an extension capability of OneAI, enabling AI to trigger and execute complex automation processes, such as data processing, system integration, and more.
2. n8n calls OneAI API: Seamlessly invoke OneAI's intelligent services within n8n workflows, injecting AI capabilities into automation processes, such as text analysis, content generation, knowledge Q&A, etc.

This bidirectional integration provides enterprises with flexible automation solutions, which can be used for customer service automation, data processing flows, cross-system business process orchestration, intelligent notifications, and more, helping enterprises improve operational efficiency and reduce manual costs.

n8n Calls OneAI API

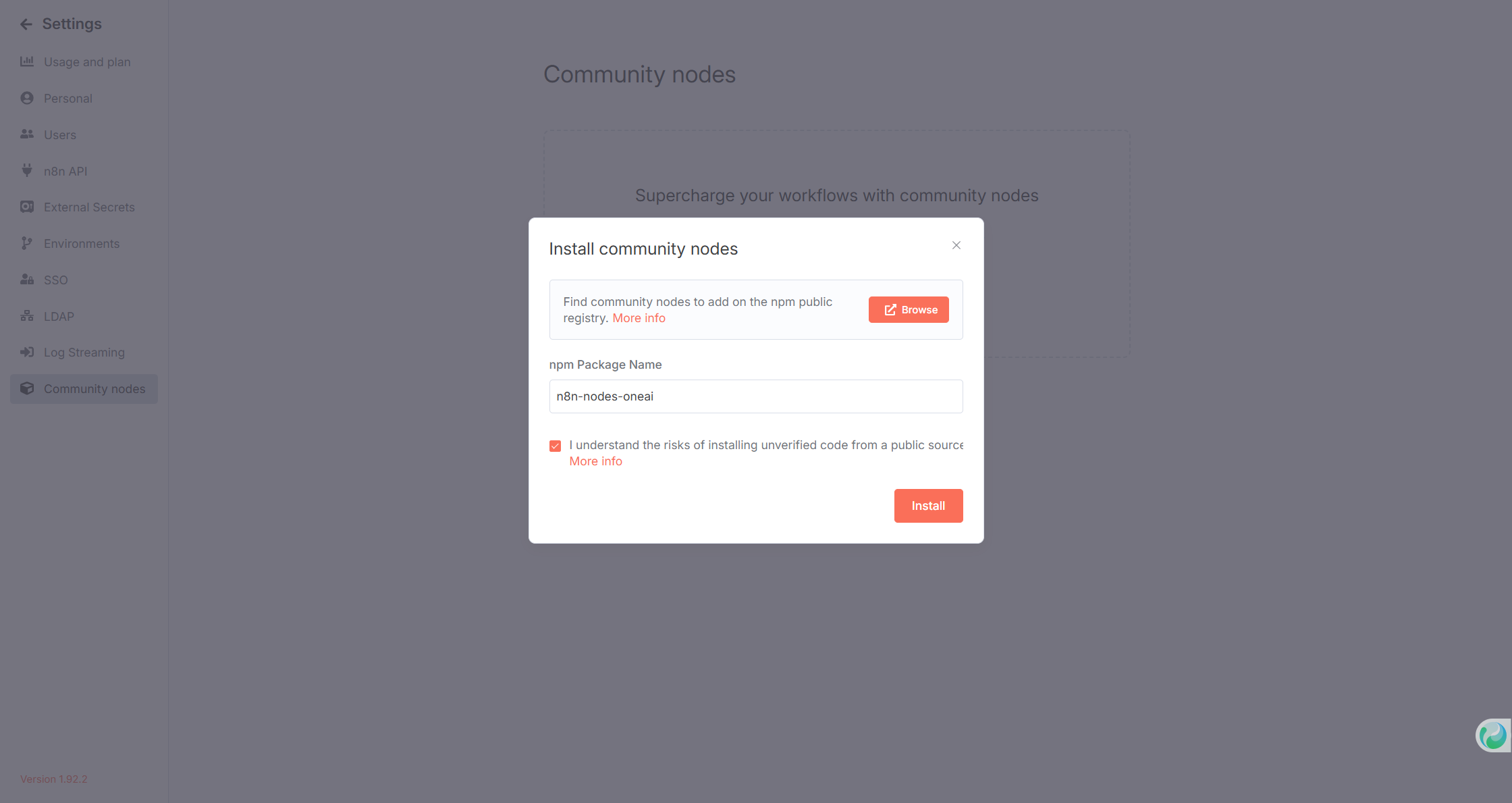

Install OneAI Community Node

Go to the settings page via the n8n workspace in the lower left corner ... > Setting, and install n8n-nodes-oneai in Community nodes:

tip

Please restart the n8n service after installing the community node, otherwise you may see duplicate OneAI nodes in the node panel.

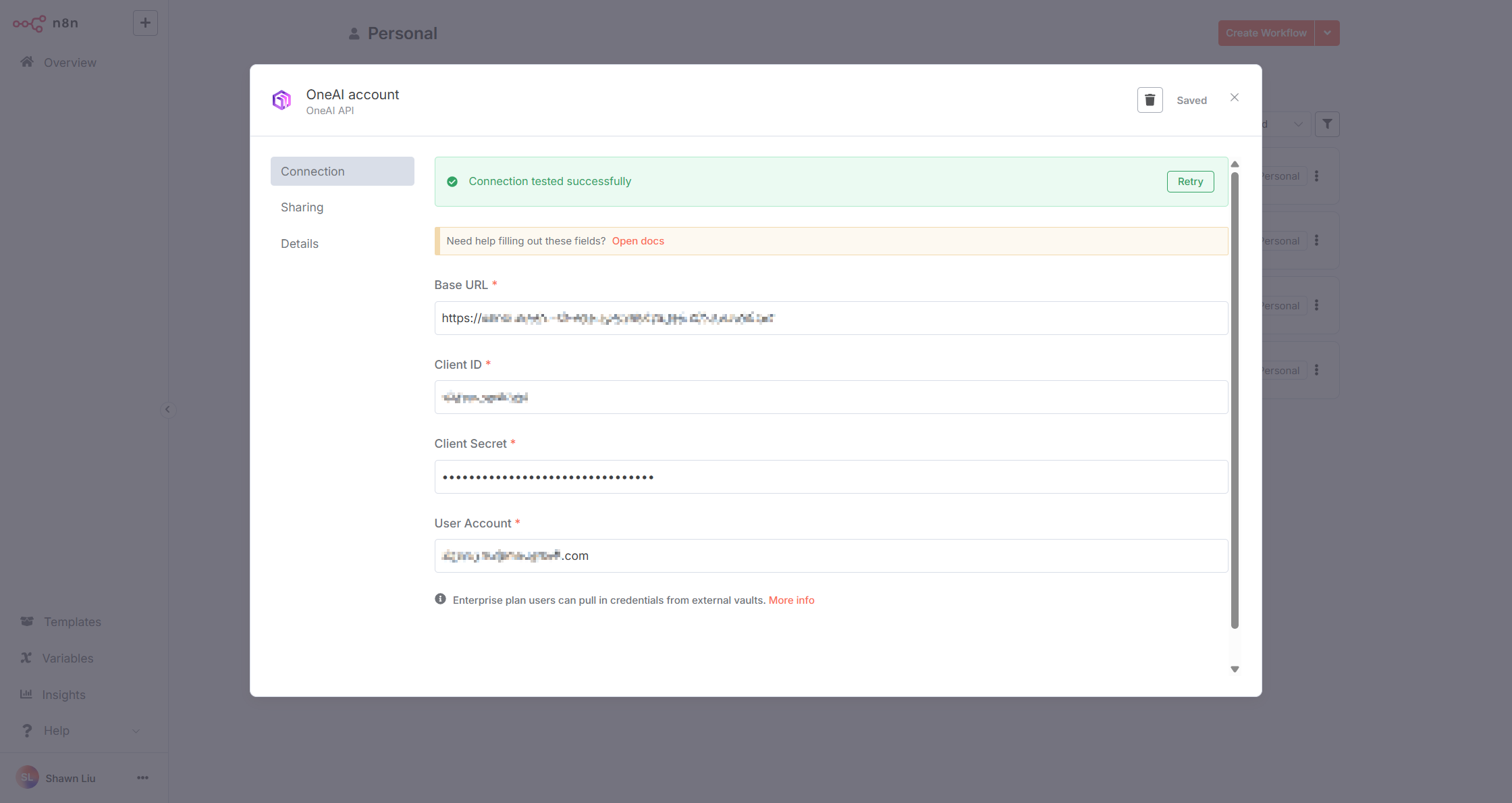

Add OneAI Credential

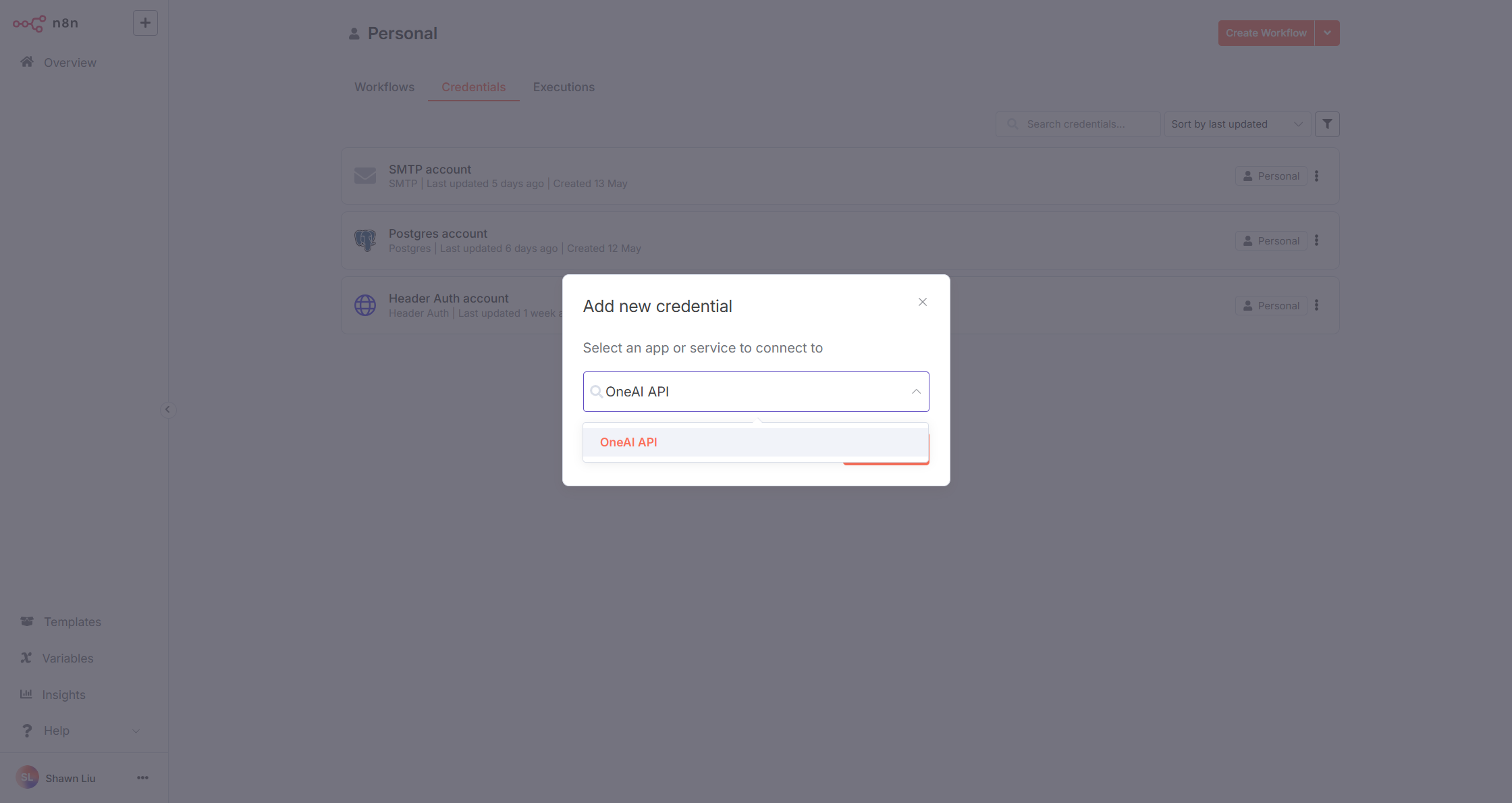

In the Add Credential interface, select OneAI.

Fill in the following information:

• Base URL: OneAI server address, without trailing /
• Client ID: Create and obtain via OneAI's Client Management
• Client Secret: Create and obtain via OneAI's Client Management
• User Account: The User Name in user management, API calls will be made as this user, please ensure the user has sufficient API permissions

After saving, the Credential will be automatically tested. If configured correctly, it will display Connection tested successfully:

Method 1: Call OpenAPI via One AI Node

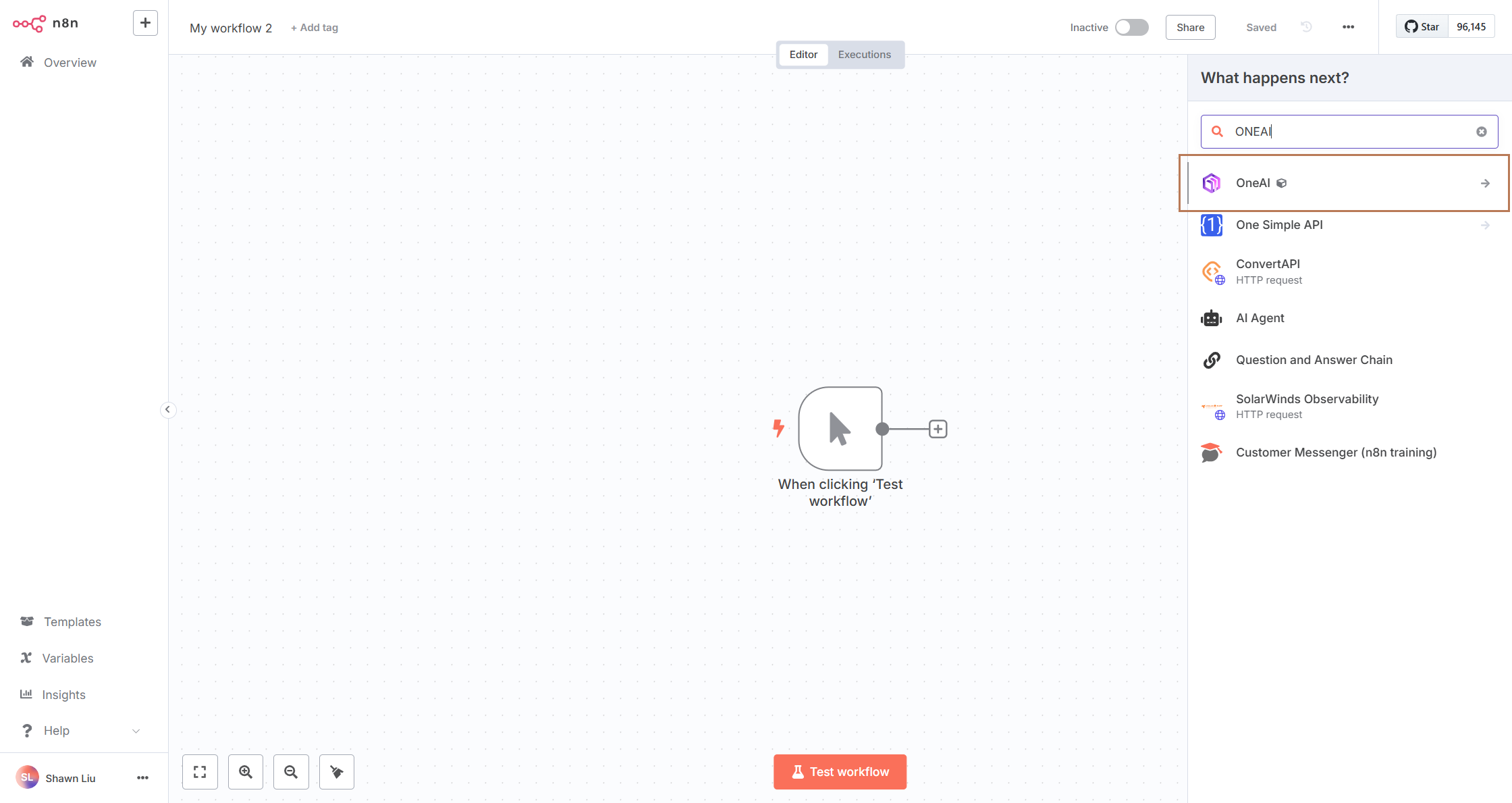

Select the One AI node:

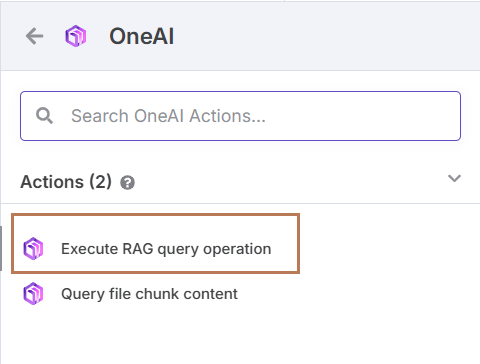

Select the Action to execute:

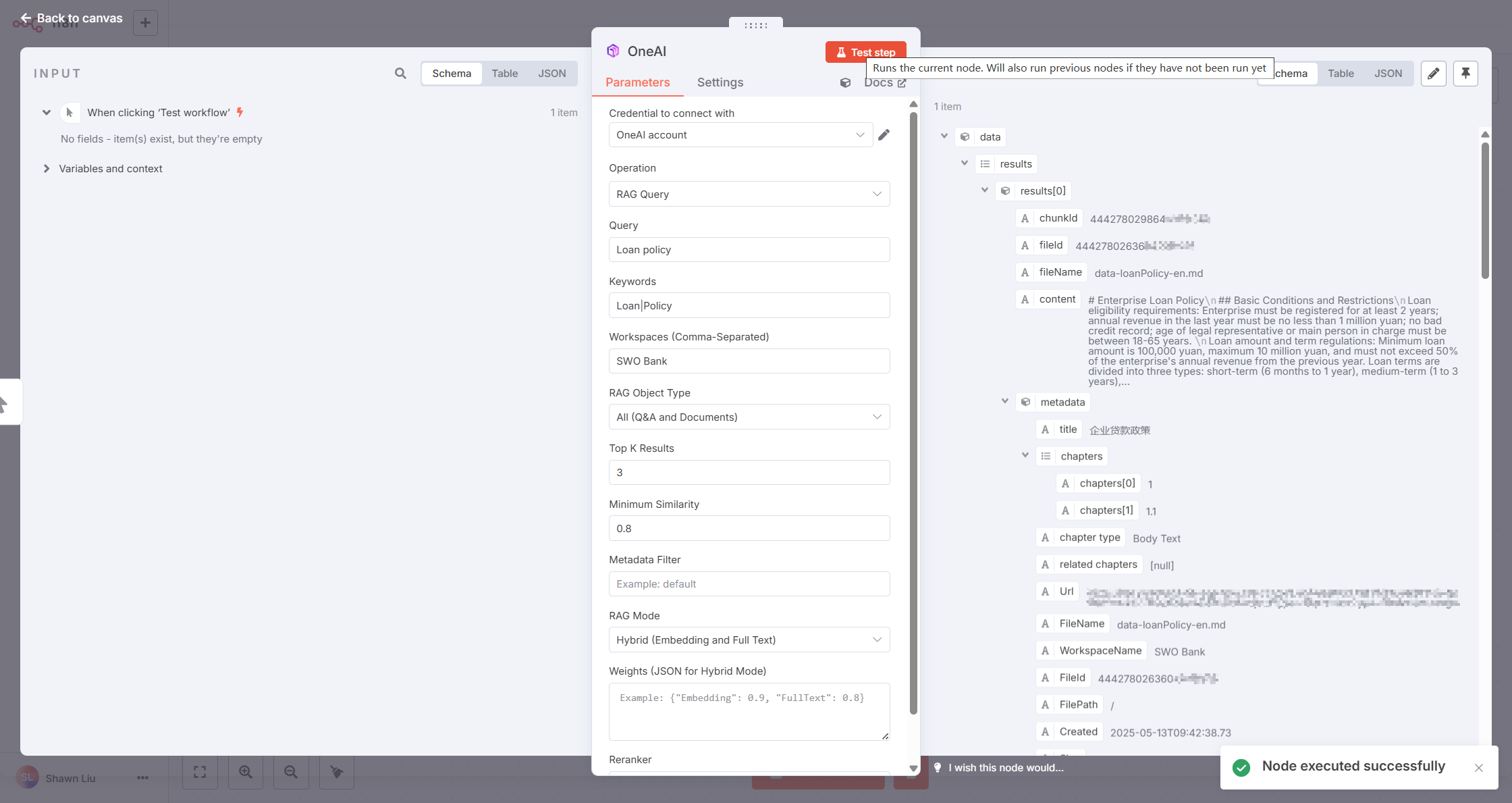

Test the node:

1. Configure with appropriate parameters
2. Click the "Test Step" button to execute the test
3. View the execution result in the right panel

Specific test steps:

• Ensure the correct OneAI Credential is selected
• Fill in the required input parameters
• Execute the node and verify if the returned result meets expectations
• If execution fails, check the error message and adjust the configuration accordingly

Method 2: Call OpenAPI via HTTP Request Node

The OneAI Node currently only provides some OpenAPI Operations. If the required API is not in the OneAI Node's Operation list, you can use the HTTP Request Node to call the API directly.

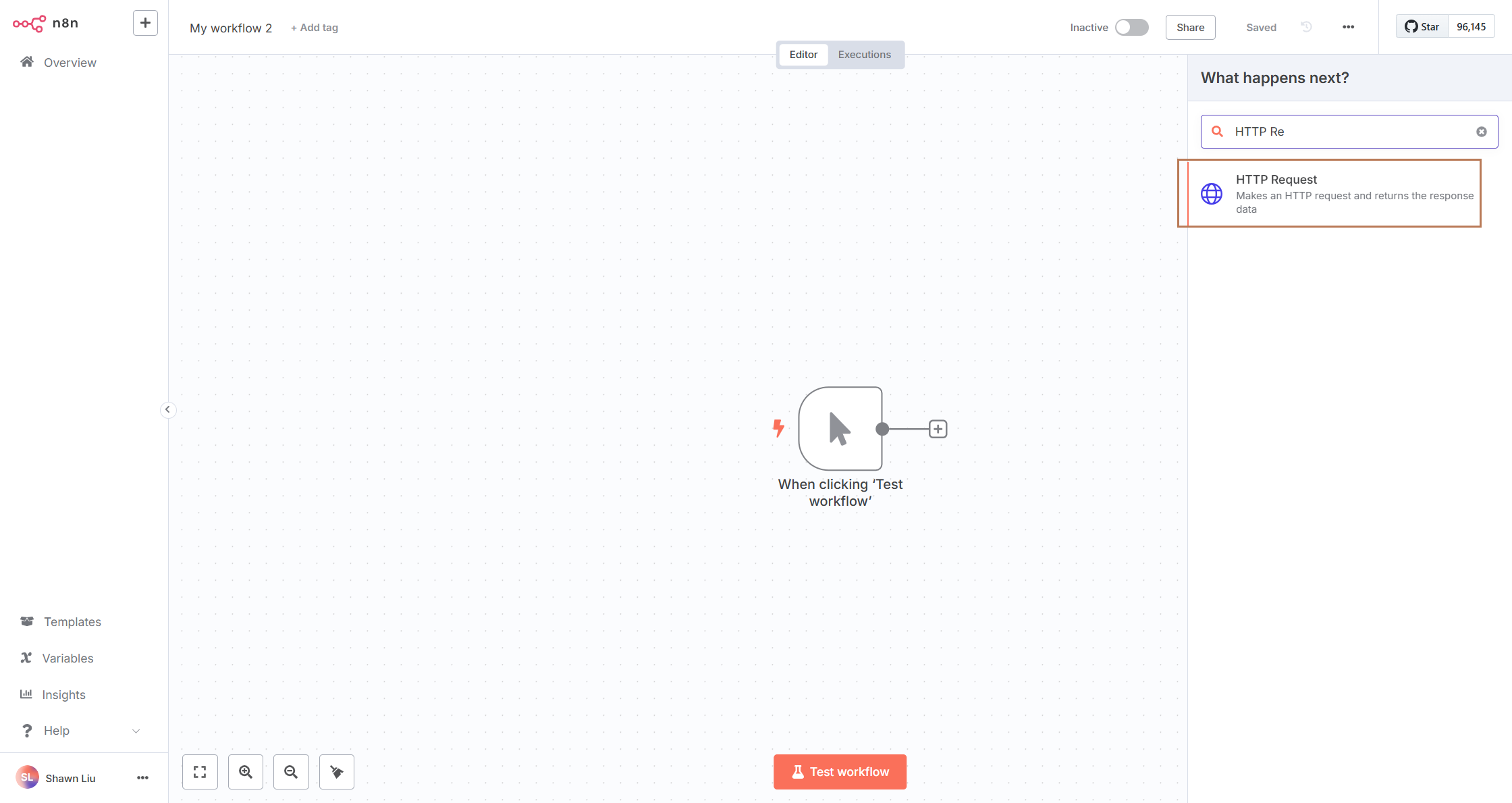

Select the HTTP Request node:

Configure request parameters:

• Method: Select the appropriate HTTP method (GET/POST/PUT, etc.)
• URL: Enter the full URL path of the OneAI API
• Headers: Add request headers as needed
• Query Parameters/Body: Configure according to API requirements

tip

You can import via Import cURL, but be sure to remove Authorization from the Header, otherwise it will conflict with the Authentication configuration below.

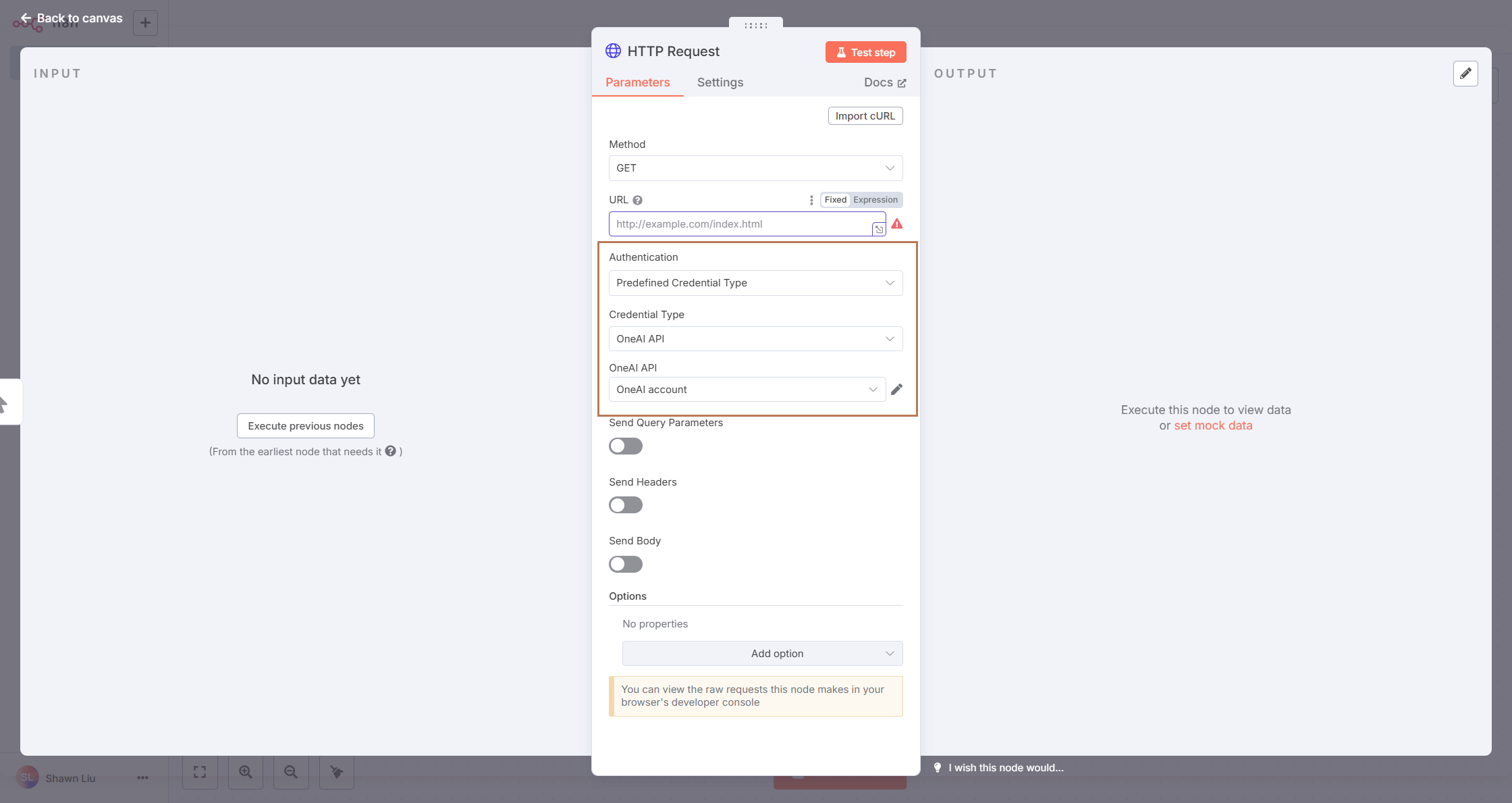

Configure Authentication:

• Authentication: Select Predefined Credential Type
• Credential Type: Select OneAI API
• OneAI API: Select an existing OneAI Credential or create a new one

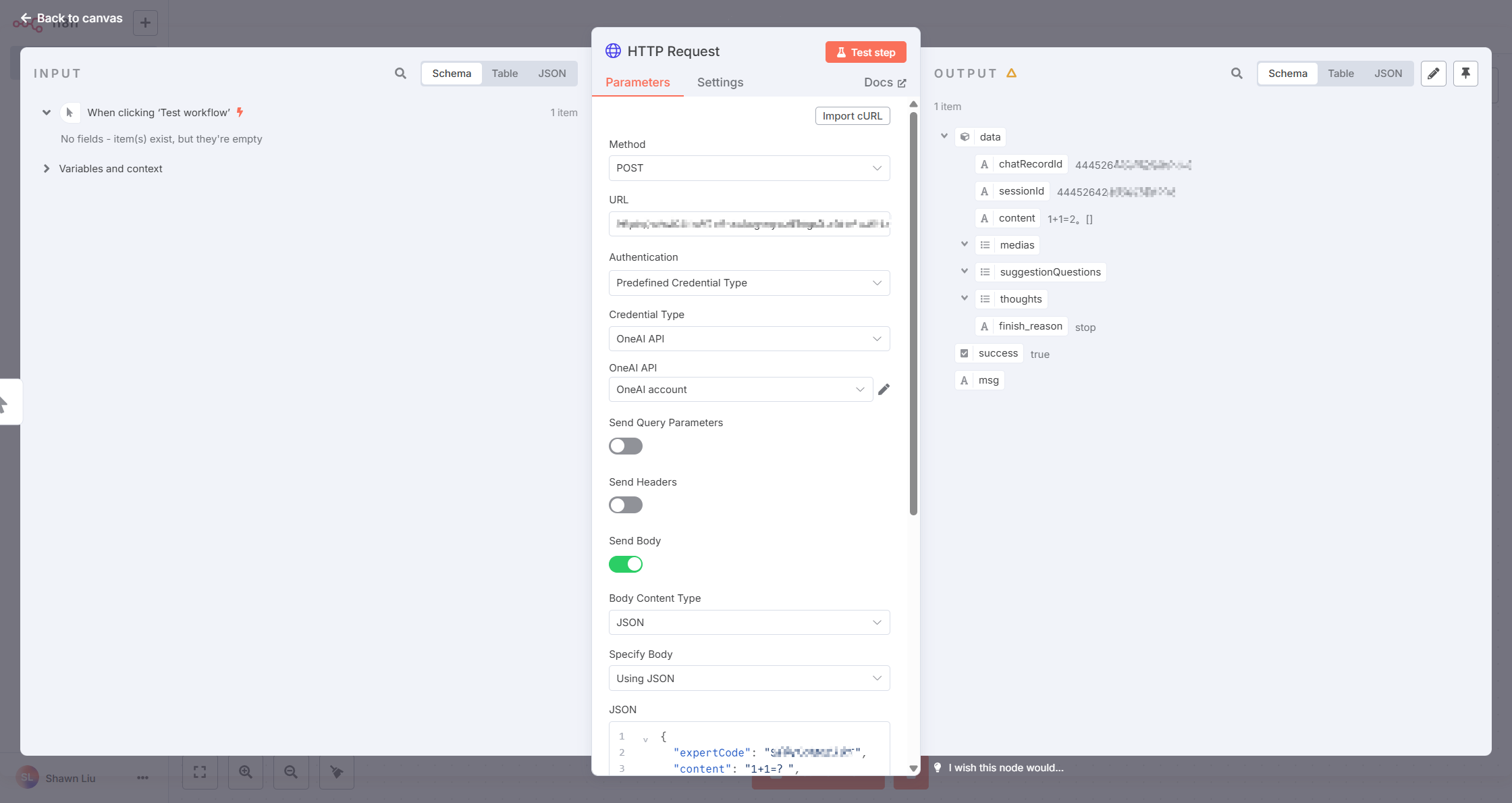

Test the node:

1. Ensure all parameter configurations are correct
2. Click the "Execute Node" button to execute the test
3. Check if the returned result meets expectations

OneAI Calls n8n Workflow

Create n8n Workflow

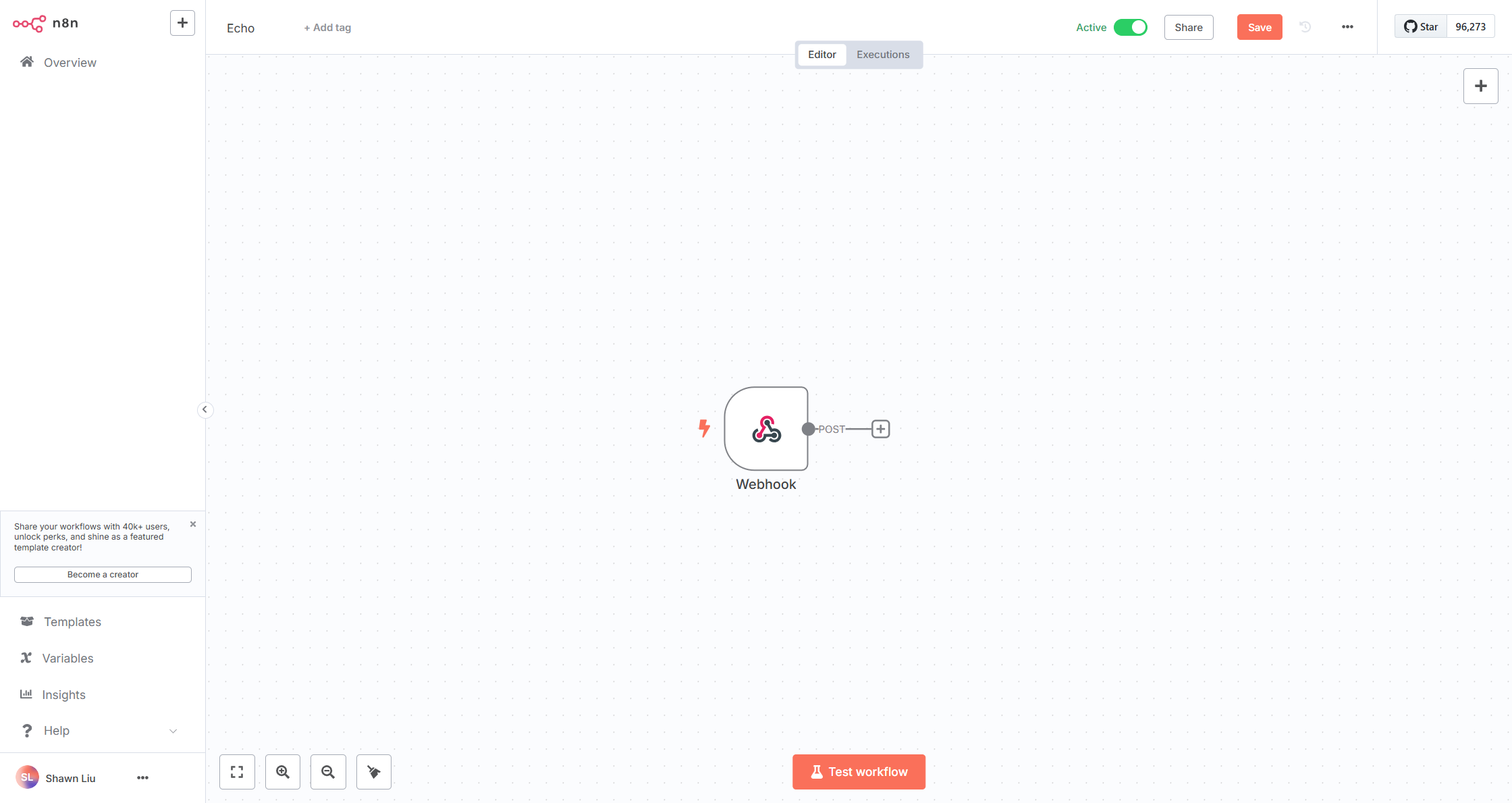

First, create a workflow named Echo, and set the Trigger to Webhook. After creation, click the "Active" button in the upper right corner to activate the workflow.

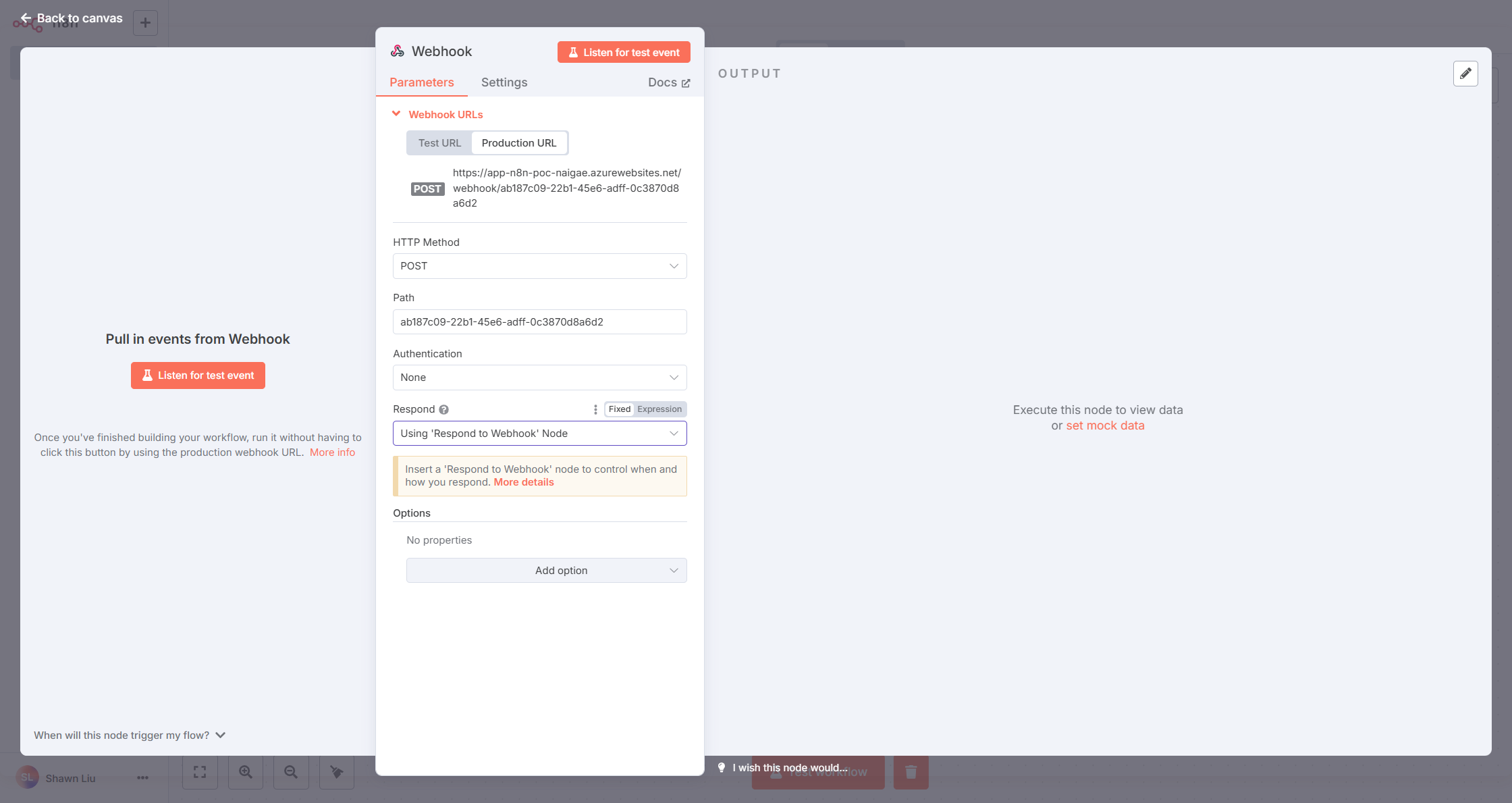

Configure the Webhook:

• HTTP Method: Select POST
• Path: The address to call this workflow, you can use the default value
• Authentication: Select Header Auth and create a Credential, save the Header and Value, which will be used in the subsequent skill plugin configuration
• Respond: Select Using 'Respond to Webhook' Node

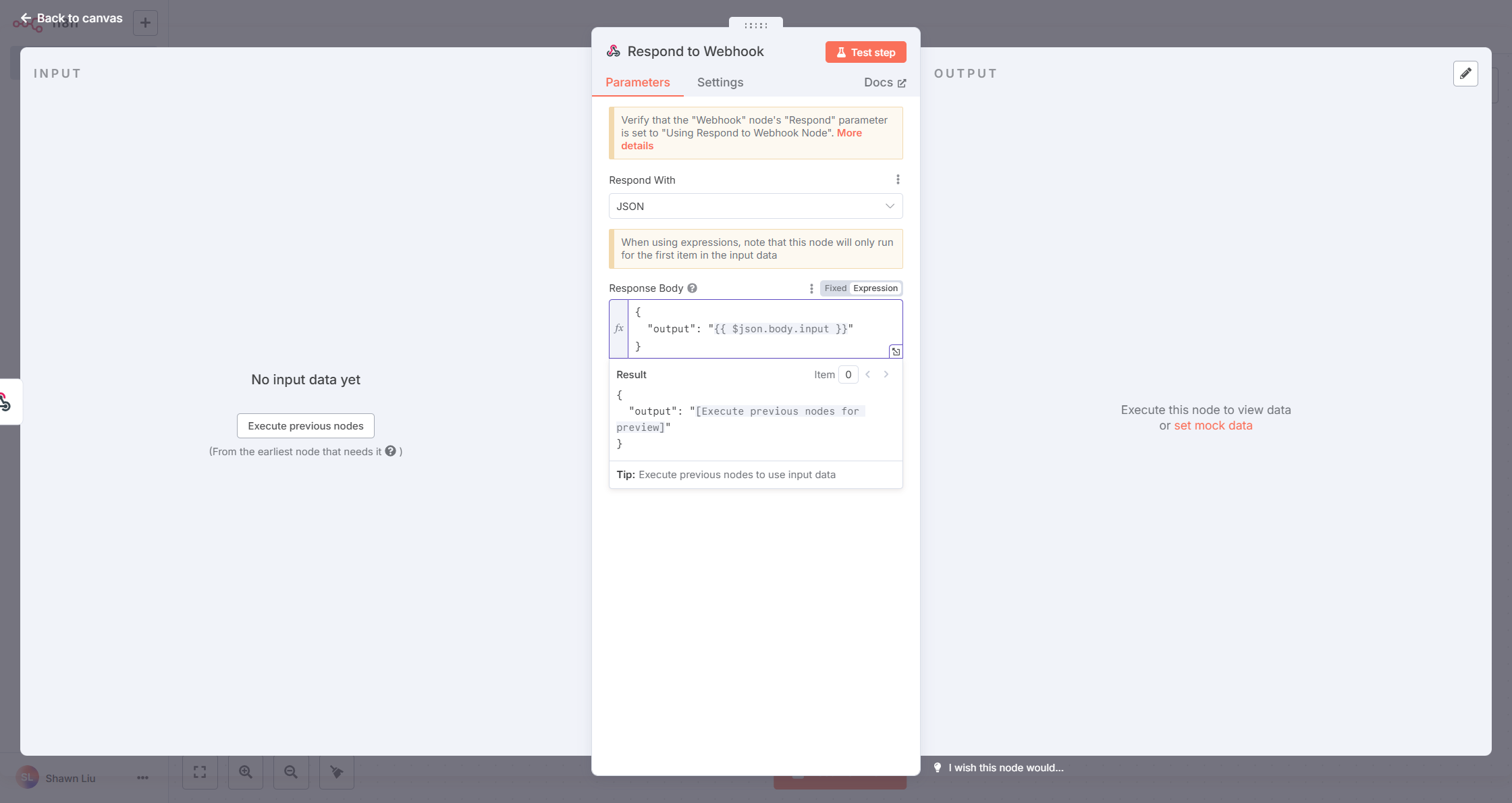

Add a Respond to Webhook node and set as follows:

• Respond With: Select JSON
• Response Body: Switch Fixed to Expression and enter the following json:

{
  "output": "{{ $json.body.input }}"
}

Add Skill and Link to n8n Workflow

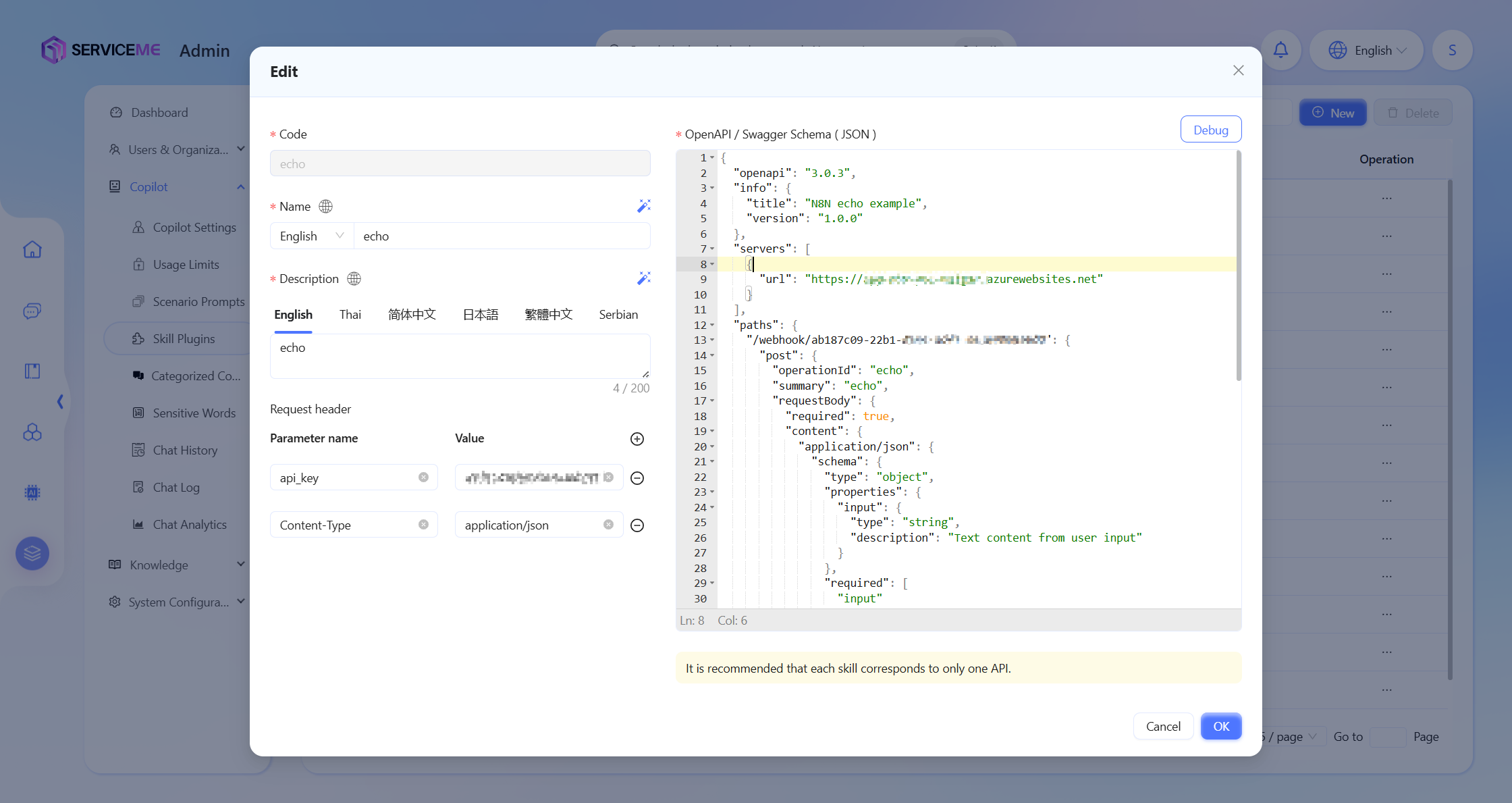

Complete the following configuration in the OneAI platform:

• Code: Enter echo
• Name: Enter echo, click the magic wand for auto-translation
• Description: Enter echo, click the magic wand for auto-translation
• Request header: If Header Auth was set in the previous n8n webhook, add the corresponding Header and Value here to ensure API authentication passes
• OpenAPI / Swagger Schema (JSON): Modify based on the following template:

tip

Replace {n8n_server_url} with the n8n server URL, and {n8n_webhook_path} with the n8n webhook node path

{
  "openapi": "3.0.3",
  "info": {
    "title": "N8N echo example",
    "version": "1.0.0"
  },
  "servers": [
    {
      "url": "{n8n_server_url}"
    }
  ],
  "paths": {
    "/webhook/{n8n_webhook_path}": {
      "post": {
        "operationId": "echo",
        "summary": "echo",
        "requestBody": {
          "required": true,
          "content": {
            "application/json": {
              "schema": {
                "type": "object",
                "properties": {
                  "input": {
                    "type": "string",
                    "description": "Text content from user input"
                  }
                },
                "required": [
                  "input"
                ]
              }
            }
          }
        },
        "responses": {
          "200": {
            "description": "Echo success",
            "content": {
              "application/json": {
                "schema": {
                  "type": "object",
                  "properties": {
                    "output": {
                      "type": "string",
                      "description": "Echo output"
                    }
                  },
                  "required": [
                    "output"
                  ]
                }
              }
            }
          }
        }
      }
    }
  }
}

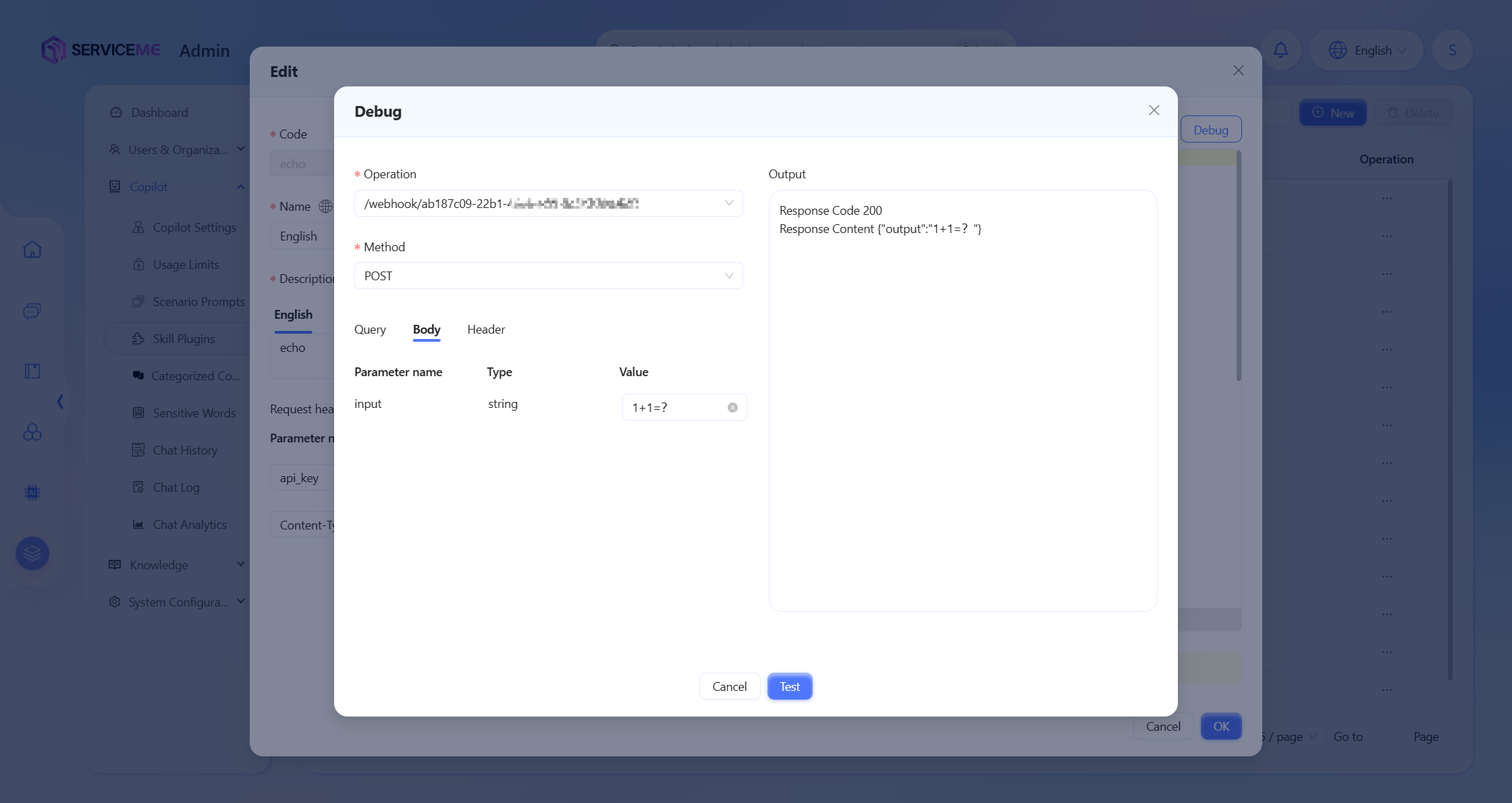

After configuration, you can click the "debug" button to test:

Call Skill via Chatbot

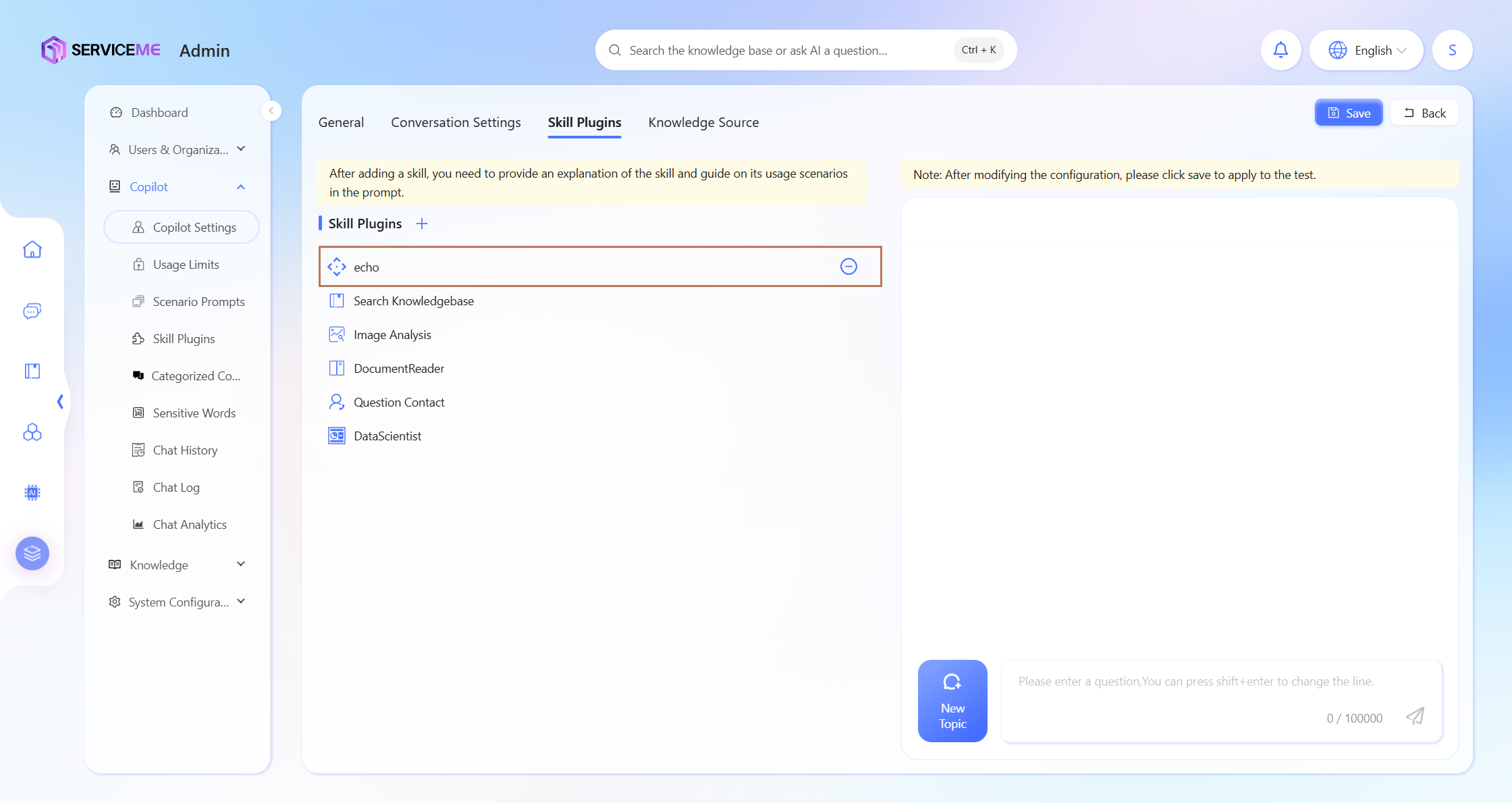

Add the echo skill to the Chatbot:

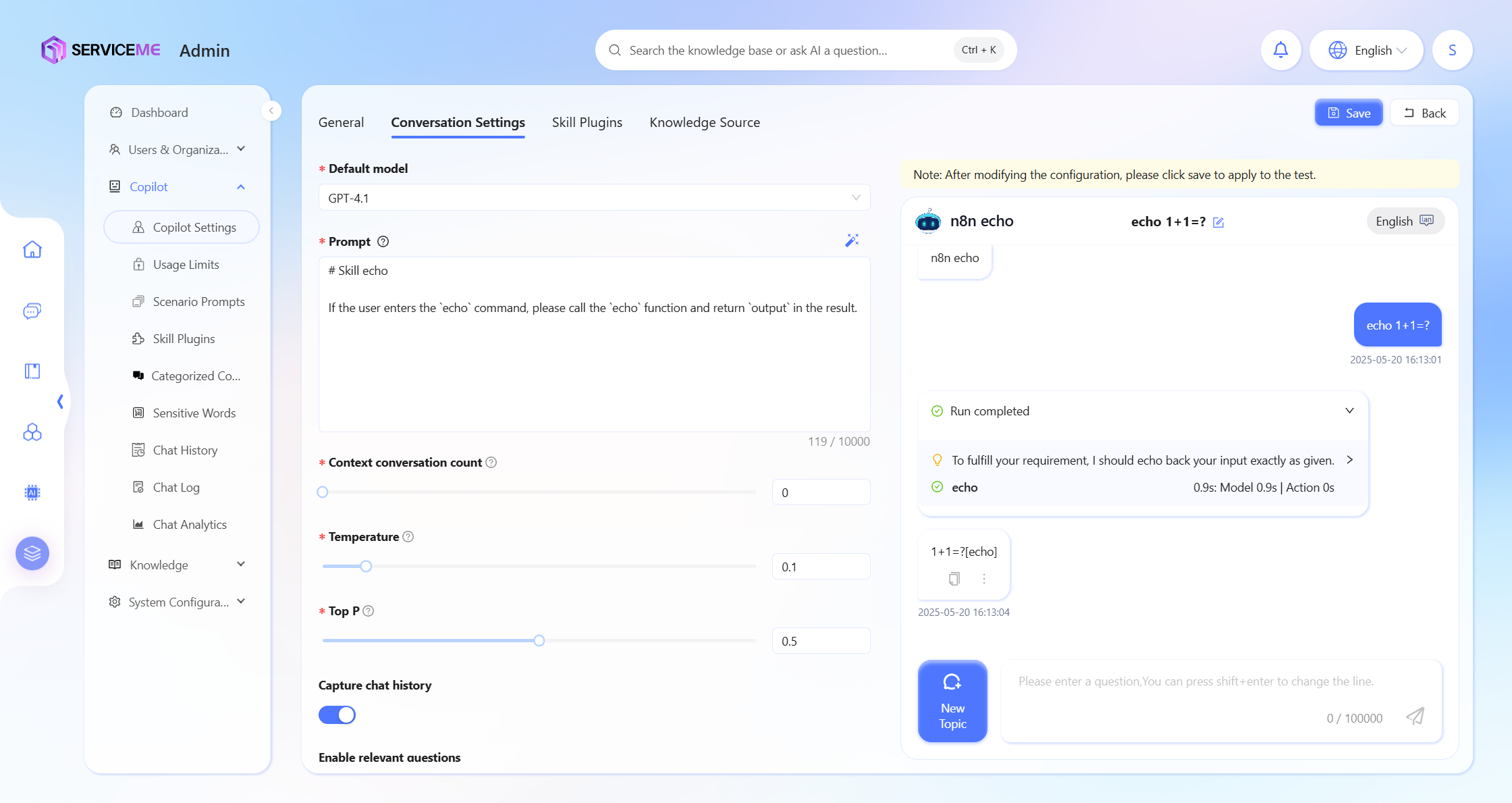

Modify the Chatbot's Prompt to guide skill invocation.

Prompt example:

# Skill echo

If the user enters the `echo` command, please call the `echo` function and return `output` in the result.

Test the skill (input echo 1+1=?, return 1+1=?, and you can see the echo skill was called):

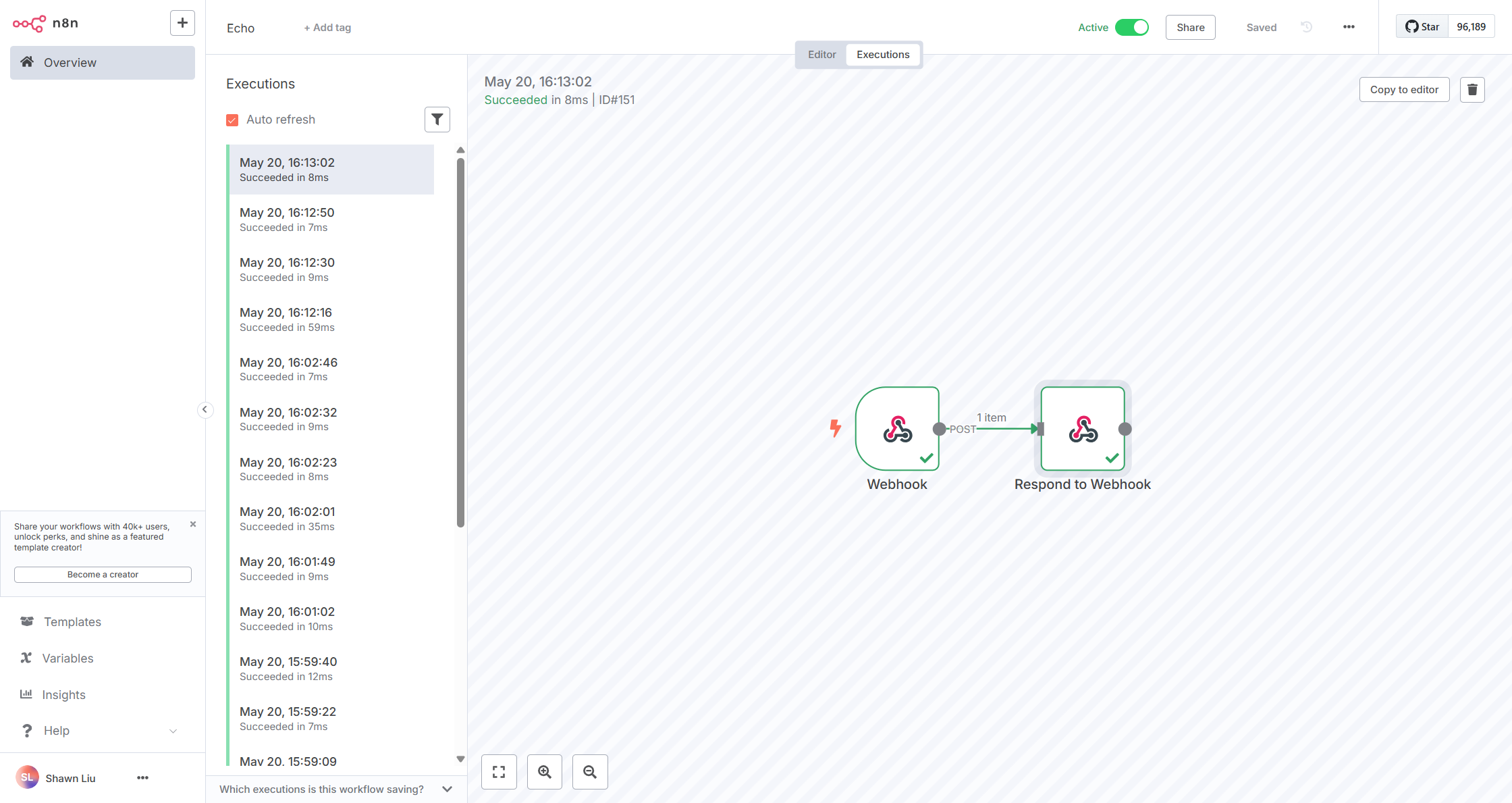

Check the n8n workflow execution status:

More complex workflows can be extended based on this example.

For example: If you need to query a database via n8n and return data, you can add a Database node between the Webhook and Respond to Webhook nodes, and configure the database connection information. Then adjust the Respond to Webhook Body accordingly to correctly return the queried data.

Best Practices & Troubleshooting

Best Practices

• Write clear comments and descriptions for each workflow
• Use appropriate error handling mechanisms to ensure workflow stability
• Regularly check workflow execution history and logs
• For complex workflows, it is recommended to validate in a test environment first

Common Troubleshooting

1. Authentication Failure

   • Check if the Credential configuration is correct
   • Confirm whether the Client ID and Secret are valid
   • Verify if the user account has sufficient permissions

2. Webhook Call Failure

   • Confirm that the n8n service is accessible from the OneAI server
   • Check if the authentication header is configured correctly
   • Verify if the webhook path is correct

3. Node Execution Error

   • Check if the input data format meets requirements
   • Confirm API version compatibility
   • View detailed error log information

Deploy n8n

n8n provides deployment documentation for various environments. You can refer to n8n self-hosted deployment to choose the deployment method that best suits your needs.

If you want to quickly deploy n8n on the Azure platform and are familiar with Terraform, the following script is for your reference:

main.tf

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "4.27.0"
    }
  }
}

provider "azurerm" {
  features {}
  subscription_id = var.subscription_id
  tenant_id = var.tenant_id
}

# Variable definitions
variable "subscription_id" {
  description = "Azure Subscription ID"
  type        = string
  default     = "your-subscription-id"
}

variable "tenant_id" {
  description = "Azure Tenant ID"
  type        = string
  default     = "your-tenant-id"
}

variable "application_name" {
  description = "Application name"
  type        = string
  default     = "n8n"
}

variable "environment" {
  description = "Environment"
  type        = string
  default     = "dev"
}

variable "location" {
  description = "Azure region"
  type        = string
  default     = "eastasia"
}

variable "container_image" {
  description = "N8N container image"
  type        = string
  default     = "n8nio/n8n:latest"
}

variable "n8n_host" {
  description = "N8N URL"
  type        = string
  default     = "your-app-url.azurewebsites.net"
}

variable "random_suffix" {
  description = "Random string"
  type        = string
  default     = "suffix"
}

variable "app_service_sku" {
  description = "App Service Plan SKU"
  type        = string
  default     = "B2"
}

# Account and password variables
variable "n8n_encryption_key" {
  description = "N8N encryption key"
  type        = string
  default     = "your-encryption-key"
  sensitive   = true
}

variable "n8n_basic_auth_user" {
  description = "N8N basic auth username"
  type        = string
  default     = "admin"
}

variable "n8n_basic_auth_password" {
  description = "N8N basic auth password"
  type        = string
  default     = "your-secure-password"
  sensitive   = true
}

variable "postgresql_admin_username" {
  description = "PostgreSQL admin username"
  type        = string
  default     = "psqladmin"
}

variable "postgresql_admin_password" {
  description = "PostgreSQL admin password"
  type        = string
  default     = "your-secure-password"
  sensitive   = true
}

# Resource Group
resource "azurerm_resource_group" "n8n" {
  name     = "rg-${var.application_name}-${var.environment}"
  location = var.location
}

# App Service Plan
resource "azurerm_service_plan" "n8n" {
  name                = "asp-${var.application_name}-${var.environment}"
  resource_group_name = azurerm_resource_group.n8n.name
  location            = azurerm_resource_group.n8n.location
  os_type             = "Linux"
  sku_name            = var.app_service_sku
}

# App Service (Web App for Containers)
resource "azurerm_linux_web_app" "n8n" {
  name                = "app-${var.application_name}-${var.environment}-${var.random_suffix}"
  resource_group_name = azurerm_resource_group.n8n.name
  location            = azurerm_resource_group.n8n.location
  service_plan_id     = azurerm_service_plan.n8n.id

  app_settings = {
    "N8N_ENCRYPTION_KEY" = var.n8n_encryption_key
    "N8N_HOST" = "${var.n8n_host}"
    "N8N_PORT" = "443"
    "N8N_PROTOCOL" = "https"
    "N8N_WEBHOOK_URL" = "https://${var.n8n_host}/"
    "GENERIC_TIMEZONE" = "Asia/Shanghai"
    "N8N_BASIC_AUTH_ACTIVE" = "true"
    "N8N_BASIC_AUTH_USER" = var.n8n_basic_auth_user
    "N8N_BASIC_AUTH_PASSWORD" = var.n8n_basic_auth_password
    "EXECUTIONS_DATA_PRUNE" = "true"
    "EXECUTIONS_DATA_MAX_AGE" = "336"
    "WEBSITES_PORT" = "443"

    # DB Config
    "DB_TYPE" = "postgresdb"
    "DB_POSTGRESDB_HOST" = "${azurerm_postgresql_flexible_server.postgresql_server.fqdn}"
    "DB_POSTGRESDB_PORT" = "5432"
    "DB_POSTGRESDB_DATABASE" = "${azurerm_postgresql_flexible_server_database.postgresql_database.name}"
    "DB_POSTGRESDB_USER" = var.postgresql_admin_username
    "DB_POSTGRESDB_PASSWORD" = var.postgresql_admin_password
    "DB_POSTGRESDB_SSL_REJECT_UNAUTHORIZED" = "false"
  }

  site_config {
    always_on                = true
    websockets_enabled = true

    application_stack {
      docker_image_name = "${var.container_image}"
      docker_registry_url      = "https://docker.n8n.io"
    }
  }
}

# PostgreSQL database server
resource "azurerm_postgresql_flexible_server" "postgresql_server" {
  name                   = "psql-${var.application_name}-${var.environment}"
  resource_group_name    = azurerm_resource_group.n8n.name
  location               = azurerm_resource_group.n8n.location
  administrator_login    = var.postgresql_admin_username
  administrator_password = var.postgresql_admin_password

  version  = "16"
  sku_name = "B_Standard_B1ms"
  # 128GB
  storage_mb = 131072

  backup_retention_days        = 35
  geo_redundant_backup_enabled = true

  public_network_access_enabled = true

  lifecycle {
    ignore_changes = [
      zone,
    ]
  }
}

# PostgreSQL firewall rule
resource "azurerm_postgresql_flexible_server_firewall_rule" "postgresql_firewall_rule" {
  name             = "AllowAzureServicesAccessPGSQL"
  server_id        = azurerm_postgresql_flexible_server.postgresql_server.id
  start_ip_address = "0.0.0.0"
  end_ip_address   = "0.0.0.0"
}

# PostgreSQL database instance
resource "azurerm_postgresql_flexible_server_database" "postgresql_database" {
  name      = "psqldb-${var.application_name}-${var.environment}"
  server_id = azurerm_postgresql_flexible_server.postgresql_server.id
  charset   = "UTF8"
  collation = "en_US.utf8"
}

# Output
output "n8n_url" {
  description = "N8N access url"
  value       = "https://${azurerm_linux_web_app.n8n.default_hostname}"
}
